Description

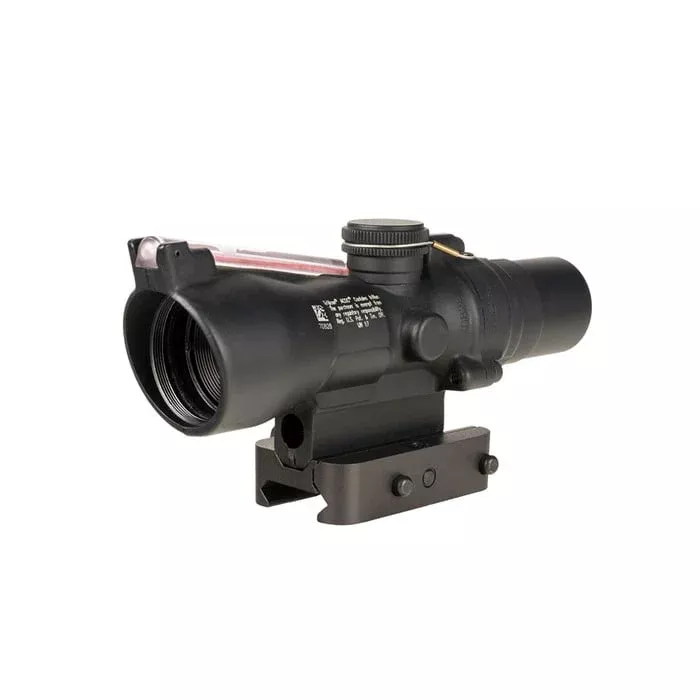

COMPACT ACOG 2X20MM FIXED RIFLE SCOPE
The Trijicon ACOG® 2×20 riflescope is well-suited to firearms with limited space, like UZI, H&K or MP-5 9mm submachine guns. With a step-up in fixed magnification, this illuminated reticle riflescope increases target detection distance in any lighting conditions. The Trijicon The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened. The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.- Matte black anodized finish- Made in the USA Torque Spec (to rail):
- Spring Tension Only: 12-16 in. / lbs.
- Can be Tightened To: 44-66 in. / lbs.
FEATURES:
ALWAYS ON, ALWAYS READYMost ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.TAKE CONTROLSeveral ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.RUGGED, RELIABLE HOUSING DESIGNFixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.“BOTH EYES OPEN” DESIGN“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.OUTSTANDING CLARITYThe quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.EXACT TARGET DISTANCES & HOLDSMost ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.COMBAT PROVENNo other magnified optic has been used more in combat than the ACOG.SHOCK-RESISTANTProven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.WATERPROOFExceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
INCLUDED IN BOX:
- Trijicon Q-LOC™ Technology Mount
- Scopecoat
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
SPECIFICATIONS:
- LENGTH: 5.3”
- WIDTH: 2.1”
- HEIGHT: 2.6”
- MAGNIFICATION: 2x
- RETICLE PATTERN: Triangle, Crosshair, Rapid Target RTR 9mm/115gr, Rapid Target RTR 223/55gr
- ILLUMINATION SOURCE: Fiber Optics & Tritium
- EXIT PUPIL: 0.69 in. (17.53mm)
- FIELD OF VIEW (feet): 29.34 ft. @ 100 yds. (9.78m @ 100m)
- HOUSING MATERIAL: Forged Aluminum
- WEIGHT: 8.5 oz. (240.97g)
- OBJECTIVE SIZE: 20mm
- DAY RETICLE COLOR: Red
- NIGHT RETICLE COLOR: Red
- EYE RELIEF: 2.1 in. (53.34mm)
- FIELD OF VIEW (degrees): 5.6°
- FINISH: Matte Black
- POWER SOURCE: Fiber Optics & Tritium
- ADJUSTMENT: 0.5 MOA per click
- BINDON AIMING CONCEPT™ (BAC):Yes
